How to engineer overland conveyors that just work?
And what separates reliable overland conveyors from costly failing ones?
The overland conveyor is the central artery of mining and bulk material handling. Everything extracted from the mine passes through it on its way to the processing plant. When it works, the conveyor is invisible. When it fails, the cost is immediate and severe – up to hundreds of thousands euros per hour in lost production.
Yet overland conveyors are consistently underestimated. They are treated in procurement processes as commodity equipment, evaluated primarily on capital cost. The result is a market littered with underperforming systems: belts that get damaged, chutes that block, drives that fail, and downtime budgets that soar.
This article explains what overland conveyors actually are, why their design is genuinely complex, and what the engineering and operational requirements are for building systems that last decades rather than years.
What is an overland conveyor?

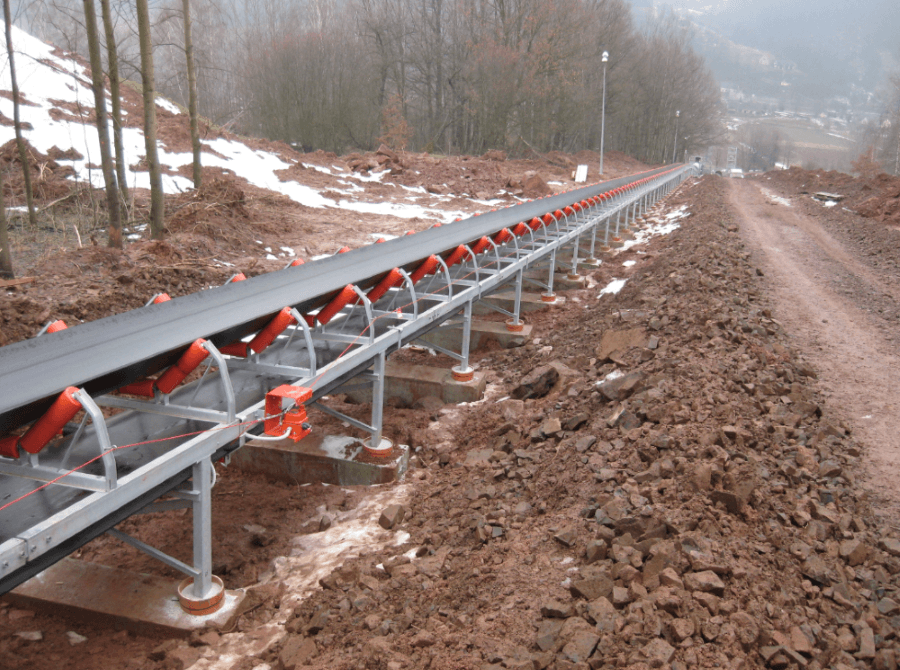

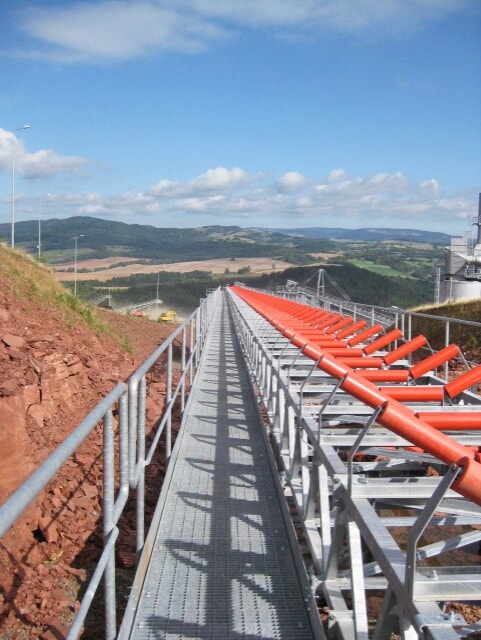

An overland conveyor is a large-scale belt conveyor system designed to transport bulk materials. They can cover long distances across challenging terrain. Unlike in-plant conveyors, which operate in controlled environments over short distances, overland conveyors must handle extreme conditions: temperature fluctuations, uneven ground, significant elevation changes, and continuous 24/7 operation over decades.
A modern overland conveyor system is not a single machine. It is an integrated system comprising of the belt, drive stations, tensioning systems, transfer chutes, structural steelwork, wear plates and belt monitoring systems. Each component must be engineered as part of the whole – and the whole must be designed around the specific demands of the site.
Poor engineering causes the majority of problems with overland conveyor
Majority of unplanned downtimes with overland conveyors could be avoided with the right engineering. However, there are several reasons why engineering overland conveyors demands a level of rigour that generic industrial design cannot provide.
Dynamic analysis and belt behaviour
A conveyor belt is not a rigid structure. It stretches, rebounds, and releases stress waves during starting, stopping, and load changes. In a short in-plant conveyor, this is manageable. In a five-kilometre overland system, the dynamic forces involved are substantial and potentially destructive if not properly modelled.
Accurate dynamic analysis requires complex mathematical models that account for belt elasticity, material flow, distributed mass, drive characteristics and braking behaviour.
Doing the dynamic analysis in adequate detail requires specialised expertise. One of the few companies in Northern Europe with this expertise is ROXON.
Transfer chute design and material flow
If dynamic analysis is the most mathematically demanding aspect of overland conveyor engineering, chute design is the most practically consequential. An experienced conveyor engineer once summarised it simply: if you can design a chute, you will succeed in the delivery.
The transfer chute – where material is loaded onto the belt – is the single point where the majority of conveyor failures originate.A poorly designed chute causes high operating costs, material build-up, blockages, off-centre loading, and belt mistracking.
Modern chute design relies on particle simulation software, which models the behaviour of bulk material through the chute geometry. This allows engineers to identify wear hotspots, blockage risks, and loading asymmetries before any steel is cut. Without this simulation capability, chute design can result in expensive surprises.
Geometry, terrain, and structural complexity
Overland conveyors must follow the terrain they traverse. This introduces horizontal and vertical curves, which create complex loading conditions in the belt and structure. The longest downhill systems can involve elevation drops of several hundred metres over a few kilometres, requiring precisely engineered regenerative drive systems and fail-safe braking.
Horizontal curves add further complexity: the belt must be guided through a curve without edge damage or spillage, requiring careful analysis of the lateral forces on each idler. Systems with horizontal curves extending over many kilometres represent some of the most technically demanding projects in the industry.
What successful overland conveyors actually require
Given the engineering complexity described above, what does it actually take to deliver an overland conveyor that performs reliably over decades? Several factors distinguish high-availability systems from those that underperform.
- Engineering specialisation. Generic engineering firms lack the competence to design critical overland conveyors. The mathematical models, simulation tools, and field intuition required take decades to develop. Firms that do this work well have specialists who have spent their entire careers in bulk material handling – and a culture of passing that knowledge to the next generation.
- Serviceability engineered in from day one. An overland conveyor that is difficult to maintain will not be maintained properly. The best-performing systems are those where maintenance engineers and operators were involved in the design process from the start.
- Standardised and proven components. Bespoke designs introduce untested failure modes. The most reliable overland conveyor systems are built from standardised, well-understood components that have been continuously refined through real-world feedback over many years.
- Front-end engineering investment. The decisions made at the layout and concept stage define the majority of a conveyor’s lifetime performance and cost. A rigorous pre-engineering phase – including dynamic analysis, chute simulation, and layout optimisation – consistently pays back its cost many times over in avoided redesign, better availability, and longer component life.
- Long-term partnership. A delivered overland conveyor is the beginning of a production relationship, not the end of a sales process. The highest-performing systems are those where the engineering team remains engaged through commissioning, early operation, and long-term optimisation.
- Monitoring. Even the best-designed overland conveyor operates in a harsh environment where belt damage is a constant risk. Foreign objects in the feed, overloading at the chute, splice degradation, and surface wear are everyday realities in mining operations. How these conditions are detected – and how quickly – determines whether a minor issue is caught early or escalates into a catastrophic belt failure. For a detailed comparison of monitoring technologies and how they contribute to overland conveyor availability, read this article.
The CAPEX trap: why the cheapest overland conveyor is rarely the most cost-effective
Overland conveyor procurement is frequently dominated by initial capital cost. This is understandable as the investment is significant. But focusing on CAPEX alone produces poor outcomes.
Consider the comparison with truck haulage. A fleet of trucks can be assembled for a much lower upfront cost than an overland conveyor. But each truck has a driver, consumes diesel, requires tyres, and has a limited payload. At scale, the operating cost differential is enormous. The overland conveyor wins decisively on OPEX – but only if it actually runs.
The same logic applies within the conveyor market itself. A system designed to a lower specification may cost less to purchase, but if it generates even modest additional downtime, the financial consequence is severe. At €100,000 per hour in lost production, a single day of unplanned downtime costs more than the entire maintenance budget for a well-engineered system operating for years. Not to mention the fact that a poorly designed overland conveyor will have a shorter lifecycle and require modernisation sooner than a well–designed one.
The practical implication is that overland conveyor decisions should be evaluated on total cost of ownership over the full operational lifespan – including the cost of availability risk, not just the itemised cost of components.
Decades of accumulating overland conveyor expertise
Against the backdrop of the engineering demands described above, it is worth examining what a specialist firm with decades of focused experience looks like in practice. ROXON has been in the market since 1959 and has delivered overland conveyor systems since the 1960s.
How does ROXON design overland conveyors?
- We use solutions that we have refined over decades to secure maximum availability. We invest continuously in standardising and improving the core design elements based on feedback we get from the field. The result is a portfolio of components and configurations that have been tested and refined across hundreds of real installations.
- Our maintenance and service team participates in the design process from the outset. The practical result is equipment that is easy to maintain and lasts longer.
- Every transfer chute ROXON designs is simulated before fabrication. Dynamic analysis of the full conveyor system is conducted using proprietary mathematical models developed over forty years as well as industry-leading software.
- We offer engineering consulting – layout development, chute analysis, dynamic modelling, and pre-engineering – as an independent service, regardless of who ultimately supplies the equipment.
Overland conveyor track record: what long-term reliability looks like
The most credible measure of overland conveyor design quality is operational longevity. Several ROXON projects demonstrate what well-engineered systems are capable of:
- A 3 km overland conveyor installed in 1988 in Sweden. By 2022, two-thirds of the belt was still original – 34 years of continuous operation. With targeted modernisation, the system is projected to deliver a further 35 years of service.
- The world’s largest downhill overland conveyor by elevation drop – 717 metres of descent over 5.5 km. One of the most technically demanding overland conveyor projects executed globally.
- World’s largest shiftable overland conveyor: 15 kilometres of overland conveyor system engineered to be repositioned as mining operations advance.
- A 276-metre overland conveyor replaced during a seven-day scheduled shutdown. The project had been dismissed by sceptics as impossible in the timeframe. It was completed on schedule – because installation success had been planned in detail at the design stage, including site logistics from day one.
Conclusion: overland conveyor investment deserves overland conveyor expertise
An overland conveyor is not a commodity purchase. It is a decades-long commitment to a critical production system. The decisions made at the design stage – on chute geometry, dynamic analysis, tensioning, standardisation, and maintainability – will determine the system’s availability every day for the next fifteen to thirty-five years.
The gap between a well-engineered and a poorly-engineered overland conveyor is not visible in a specification sheet. It shows up in the availability numbers – and in the production reports, maintenance costs, and safety records over years of operation.
When evaluating an overland conveyor project – whether new installation, modernisation, or engineering consultancy – the most important question is not what the equipment costs. It is: how many hours can this system afford to stand still?
You might also be interested
FAQ: overland conveyor design and engineering
Q: What is the difference between an overland conveyor and a standard belt conveyor?
A: Scale, terrain, and engineering complexity. In-plant conveyors typically operate over short distances in controlled environments. Overland conveyors can span kilometres of open terrain, follow complex vertical and horizontal curves, and must operate continuously for years under extreme conditions. They require specialised dynamic analysis, chute design, and structural engineering that standard conveyor design does not address.
Q: Why is transfer chute design so critical for overland conveyor performance?
A: The transfer chute is where material is loaded onto the next belt – the single point where the majority of availability failures originate. Poor chute design leads to off-centre loading, belt mistracking, blockages, and accelerated wear. Modern chute design uses simulations to model material behaviour in detail before fabrication, eliminating the guesswork that causes costly failures.
Q: What is dynamic analysis in the context of overland conveyor design?
A: Dynamic analysis models the behaviour of a conveyor belt during starting, stopping, and load changes – accounting for belt elasticity, distributed mass, drive characteristics, and the interactions between components. In long overland systems, the forces generated during these transient events can be destructive if not properly managed. Accurate dynamic analysis requires sophisticated mathematical models and specialist expertise that only a handful of firms worldwide possess.
Q: When does an overland conveyor make more economic sense than truck haulage?
A: Overland conveyors are most competitive for continuous, high-volume transport over distances exceeding a few hundred metres in operations running 24/7. The capital cost is higher, but operating costs are dramatically lower than truck haulage at scale – no drivers, minimal fuel, and much higher capacity per unit of infrastructure. The breakeven point depends on volume, distance, and terrain, but for large mining operations the economics strongly favour conveyor solutions.
Q: What does front-end engineering for an overland conveyor project involve?
A: Front-end engineering typically includes layout development, route analysis, dynamic modelling of the belt system, transfer chute simulation, drive and tensioning system selection, and structural concept development. It can be purchased independently of equipment supply and used to develop a rigorous technical specification for competitive tendering. Investing in proper front-end engineering consistently saves multiple times its cost in avoided design errors, better availability, and longer component life.
