Stop belt mistracking with the ROXON Belt-Pilot self-aligning roller
Belts rarely run perfectly true. Loading that lands slightly off-centre, friction differences across the conveyor, idlers that are not exactly square, a belt that is not perfectly straight — any of these will push the belt sideways. Once it starts to drift, the problem feeds itself.
The consequences show up fast. Spillage along the length of the conveyor. Hot rubber grinding against steel, which is a fire risk on its own. Unplanned shutdowns to realign the belt.
Tilted troughing idlers are the usual answer and they work well on unidirectional conveyors. They do not work on reversible ones, because the tilt has to alternate along the conveyor and the centring effect cancels itself out. That gap is where the Belt-Pilot fits in.
The ROXON Belt-Pilot self-aligning return roller

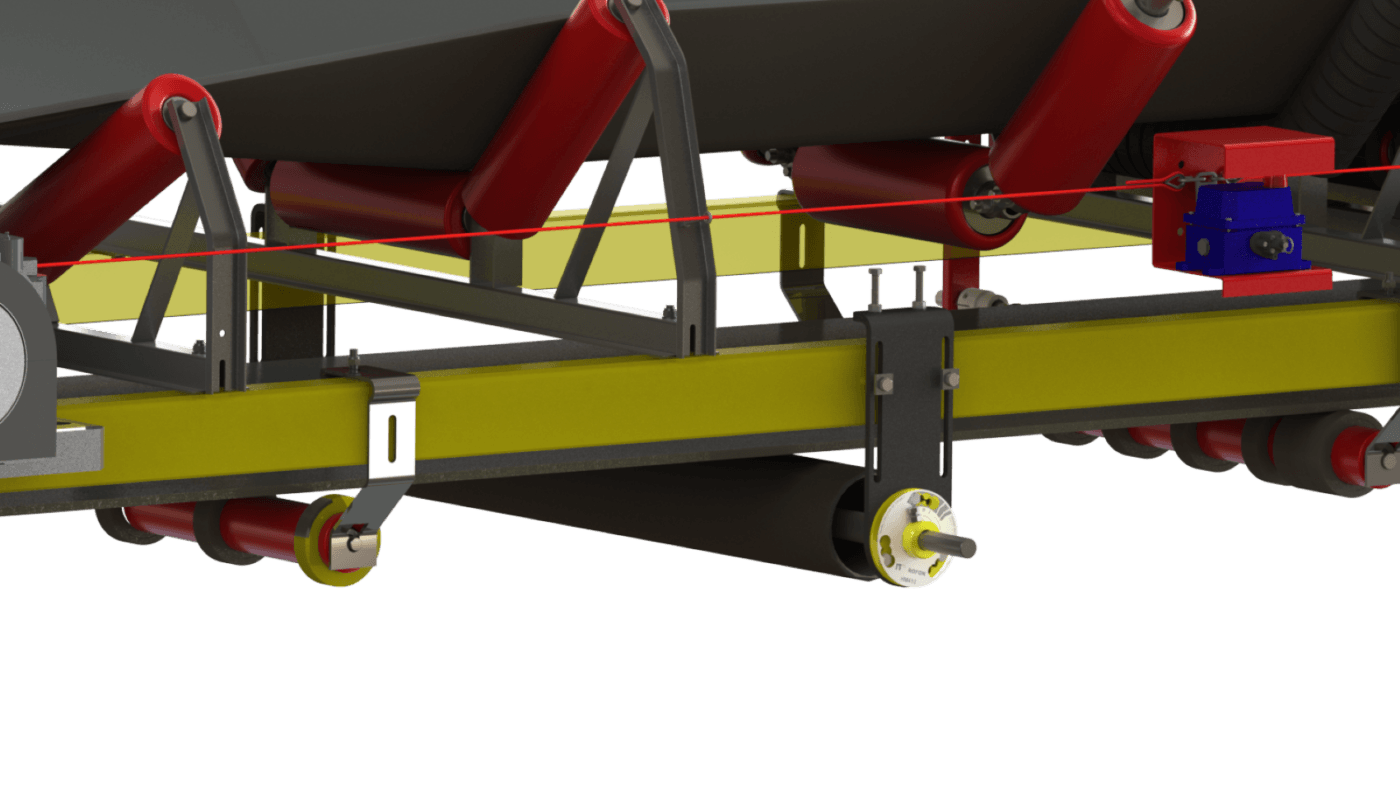

The ROXON Belt-Pilot is a self-aligning return roller. It is installed on the return run of the conveyor and corrects belt drift automatically, before it reaches the level that damages equipment or stops production.
The mechanism is deliberately simple. A fixed shaft is mounted on standard brackets. The roller body sits on the shaft through a pivoting joint that allows it to tilt sideways. When the belt drifts, the roller tilts and steers the belt back toward the centre. The sealing keeps fines and dust out of the bearings, so the unit runs maintenance-free for its full service life.
What is the Belt-Pilot used for?
The Belt-Pilot can be used practically anywhere, where a belt is drifting and the standard centering methods are not enough. That includes reversible conveyors, where tilted idlers do not work at all, and unidirectional belts where loading conditions, friction differences, or alignment issues are pushing the belt off track. Only a few rollers on the return run need to be Belt-Pilots. Typically one near the head and one before the tail are enough to stabilise the belt.
A simple design that reacts to any drift
Three things separate the Belt-Pilot from a standard return idler.
- The first is the dual job. A standard return idler supports the belt. The Belt-Pilot supports the belt and corrects mistracking actively, reacting to any deviation from balance no matter how small.
- The second is reliability. The structural design is simple, which makes it dependable in the field. The sealing was redeveloped after early field experience showed bearings could be damaged by fines — the current model holds dust out across its full service life
- The third is how easy it is to fit. Standard brackets bolt to the conveyor frame and the roller drops into place. No structural modifications, no realignment of the surrounding idlers. Standard variants are held in stock, so delivery is fast when a site needs to fix a problem now.
Useable in numerous applications
Mining, ports, power plants, biomass handling, and process industries. The Belt-Pilot is most useful on conveyors with persistent mistracking — variable loading points, bidirectional operation, long belts where small alignment issues compound over distance. It is not the right answer for conveyors that run true without help, or for some very high-speed applications.
Proven in the field
A recent example: two of a customer’s bidirectional distribution conveyors had persistent mistracking caused by a variable loading point. Two Belt-Pilots installed on the return run resolved the issue.
Need help specifying the right return roller for your conveyor? Contact our team to discuss diameters, coatings, and placement.
