How to choose conveyor pulley for maximum lifetime value?

Many conveyor pulley purchases start with the wrong question. The buyer asks “what shaft size do I need?” and works from there. It’s also the most common way to end up with a pulley that fails sooner than it should – and in the worse case, stops the entire mine or plant.

The better question is what load the conveyor pulley actually has to carry, and what it costs to keep it running for years. When framed like this, several of the choices that look more expensive on the quote turn out to be the ones that lower the real cost. This quick guide walks through six of them, so you can choose the right conveyor pulley the first time.

1. Size by load, not by shaft

Two conveyor pulleys can share the same 60 mm shaft and cost very different amounts per unit of capacity. For example, a dead-shaft pulley of the same shaft size can support twice the load of a live shaft pulley, because the shaft doesn’t turn and the pulley rides on bearings mounted on it.

Similarly, welded-shaft pulleys usually are the most expensive per kN of capacity as they have lower load capacity, which can lead to fatigue and reliability issues. Also, two identically sized pulleys with different locking device types can have widely different load bearing capacities.

Sizing on shaft diameter alone hides those differences. It also invites the opposite mistake: an undersized pulley. Push too much load through a shell that can’t take it and the shell cracks. Size by load, and you pay for the capacity you need.

2. Let the lagging shrink the pulley

Better lagging can make the whole conveyor pulley cheaper.

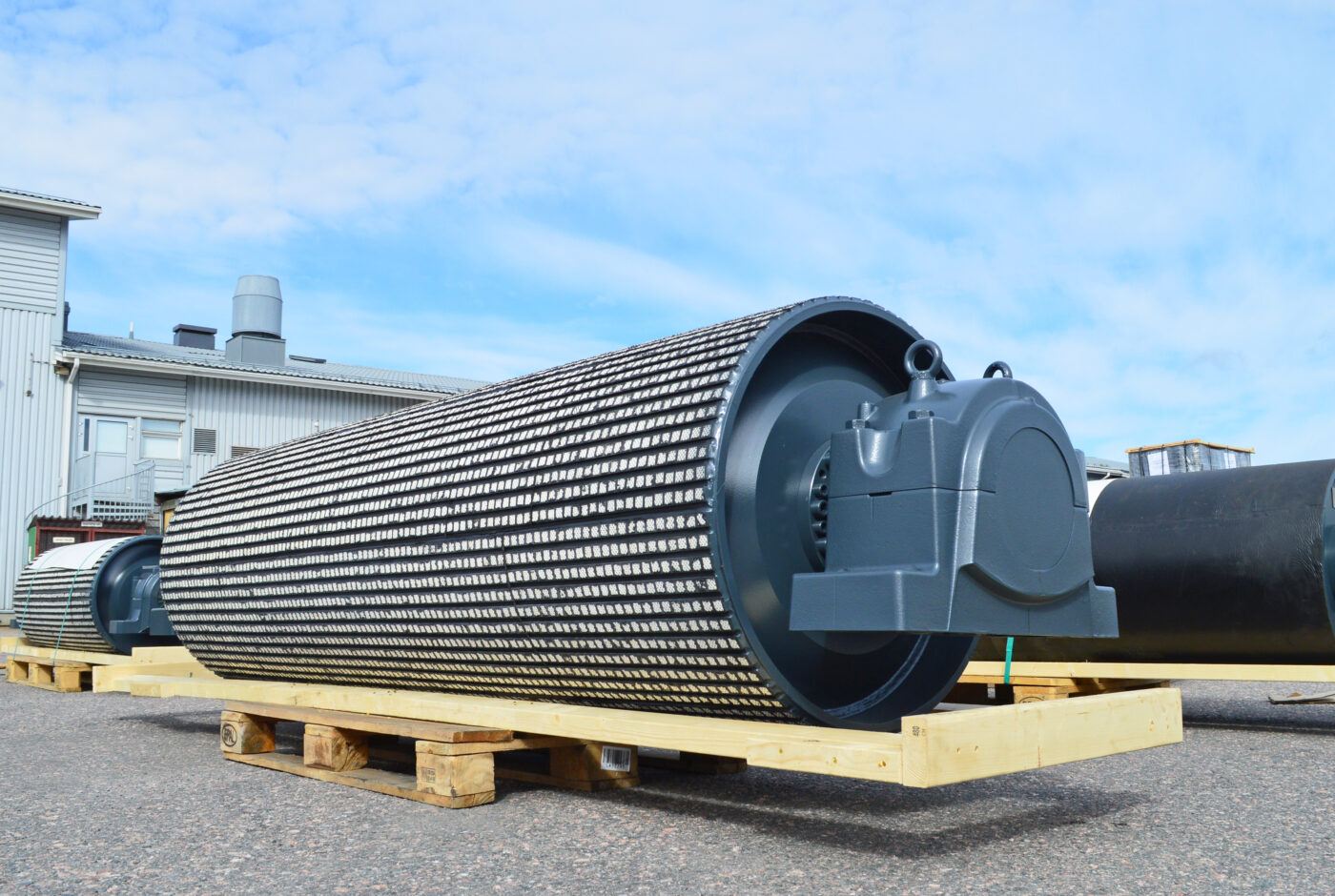

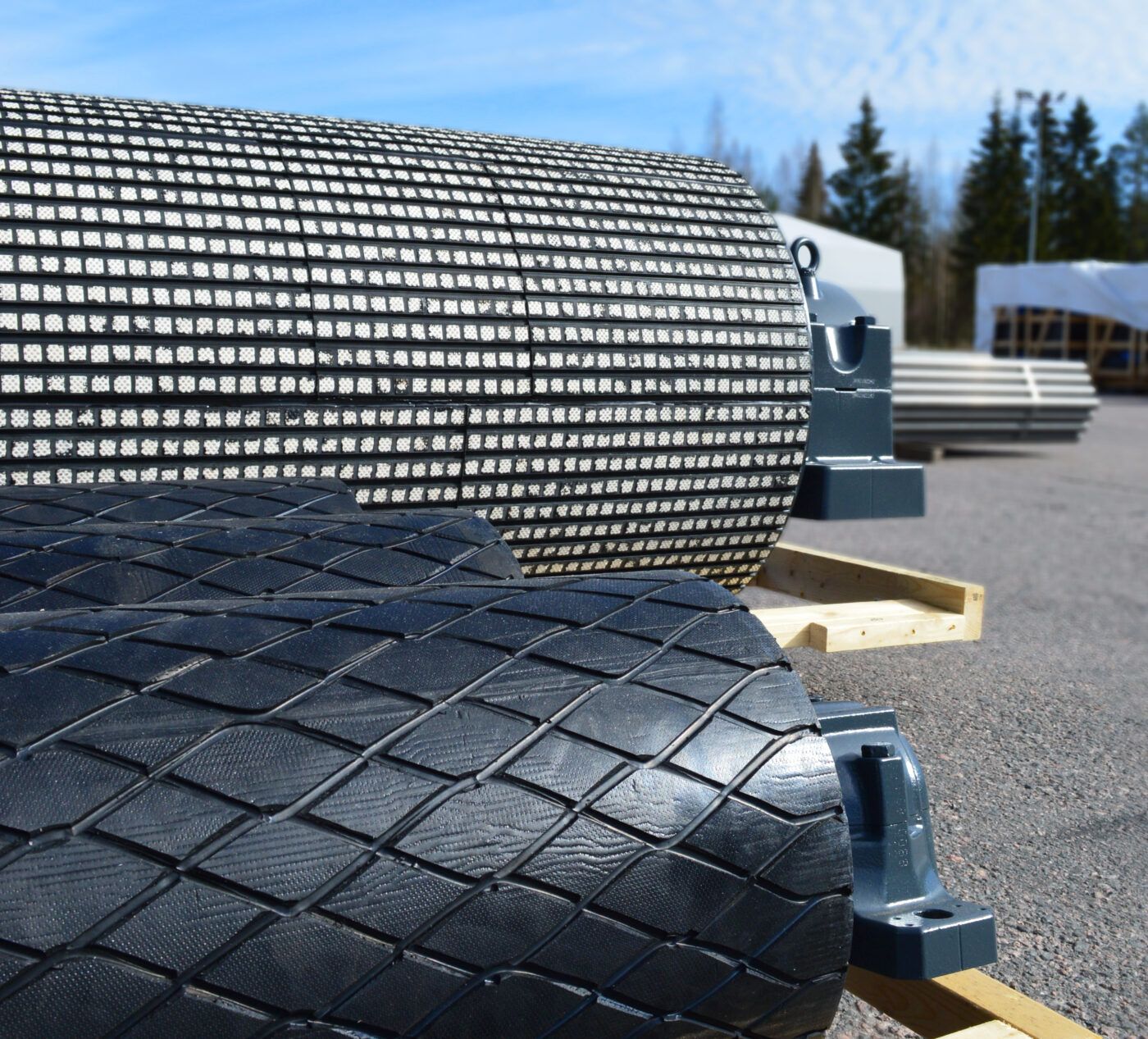

The logic runs through belt tension. A bare steel pulley has low friction, so the belt needs a heavy counterweight to stay tight against it — and that counterweight loads the pulley, the bearings, and the shaft. Add a few millimetres of rubber and friction improves, the tension comes down, and every component downstream can be smaller. Add ceramic lagging and friction improves again. However, ceramics should only be used on drive pulleys or it will increase wear on the clean side of the belt.

The effect is not marginal. In some cases, the higher-friction surface pais for itself several times over and lasts years longer before it needs replacing.

Two things are worth keeping in mind. Friction matters most on drive pulleys and especially on rising conveyors where the belt has to pull a load uphill. On tail pulleys it’s far less relevant, so paying for a high-friction surface there rarely makes sense.

Coating life is the other half of the calculation. The surfaces differ not just in friction but in how long they last, and ceramic lasts the longest. A higher up-front lagging cost can thus reduce costs over the lifecycle of the pulley.

3. Match the lagging to the job

Lagging does different work in different positions. On the drive pulley it provides friction. On tail pulleys its job is to keep the pulley clean and prevent belt misalignment and wear.

The conveyed material matters less often than people expect. For example, in most mines, ordinary rubber works well. The exceptions are worth knowing. Some materials in wood handling, such as eucalyptus can degrade  rubber. Rubber melts in relatively low temperatures, so any pulleys used in or near hot should not use rubber. That’s where ceramic or an epoxy-and-grit surface earns their place.

4. Give the supplier the inputs that actually matter

A conveyor pulley can be sized properly from a short list: what the pulley does (drive or tail), the belt tension kN, the belt width, the conveyor length and geometry, and the capacity.

It’s also important to know why you need a pulley. Did the last one break unexpectedly? If so, how/where did it break? These information along the measurements helps a professional supplier provide the right pulley.

Future expectations should also be a part of the discussion. If you want improved maintenance and the potential to just replace the shaft, switching from a welded-shaft pulley to a live or dead shaft pulley makes sense.

5. A standard pulley beats custom often than you’d think

A standard pulley is built from material already on the shelf, such as shells, shafts, bearings, end discs so it ships fast and behaves predictably. When tailor-made pulleys are required, their design is best left to an engineer with pulley experience, as they can find the right data and optimize the pulley based on that.

Standardising also pays off across a site. A multi-conveyor operation might assume it needs ten different pulleys when four will do the job. Fewer unique pulleys means a lower price and a much smaller spare-parts burden to carry for the next twenty years.

6. Watch the small changes that aren’t small

Tweaking specifications can quietly raise the price. Adding a non-centering locking device, a special shaft material adds, an off-stock tube and a thicker ceramic lagging can double the price of your pulley. Every off-stock change also adds lead time. A change that looks trivial on a drawing can move both the budget and the delivery date.

Understanding the specific needs of your use case and sharing them with the pulley vendor is the key to getting a pulley that isn’t over-enginereed and overpriced for the job.

The right pulley is the cheapest one in the long run

A mine once installed a spare pulley that looked identical to the original from the outside. Internally it was totally different, so it didn’t take long until it broke down and stopped the whole operation.

That’s the whole guide in one story. The cheapest pulley is the one that’s correctly sized for its load, correctly lagged, built from standard parts where it can be, and clearly identified for the next person who has to replace it. Every ROXON pulley leaves the factory with a label carrying its article number, so the right one goes back in the right place.

A quick checklist before you order:

• Confirm what the pulley does — drive, tail, bend or snub.
• Size by load and price per kN, not by shaft diameter.
• Choose lagging for friction and cleanliness — and let it shrink the pulley.
• Prioritize a standard pulley unless the application genuinely demands otherwise.

Conveyor pulley FAQ

Q: What is a conveyor pulley?

A:A conveyor pulley is the cylindrical drum that drives or redirects a conveyor belt. A typical conveyor has at least two: a drive pulley that powers the belt and a tail pulley that turns it at the far end. Bend, take-up, and snub pulleys guide and tension the belt in between.

Q: How do I choose the right conveyor pulley?

A: Start with the load the pulley has to carry. Confirm the pulley’s function, get the belt tension and key conveyor inputs, then size by load and price per kN. Choose lagging for friction and cleanliness, and use a standard conveyor pulley unless the application genuinely demands a custom one. Talk openly with the vendor about your needs.

Q: What is conveyor pulley lagging and do I need it?

A: Lagging is the surface layer bonded to the pulley shell. On a drive pulley it adds friction so the belt grips without excessive tension; on bend, tail, and take-up pulleys it keeps the surface clean, prevents material buildup and reduces wear. Skipping it usually leads to belt slip, spillage, and faster roller wear, so most pulleys benefit from the right lagging.

Q: Why do conveyor pulleys fail?

A: The most common causes are incorrect belt tension, an undersized pulley, contamination reaching the bearings, worn lagging, and misalignment. Some failures trace back to maintenance, others to pulley selection, which is why sizing the pulley correctly at the order stage prevents failures.

Q: When should I replace rather than repair a conveyor pulley?

A: If the shell is cracked or the shaft is deformed, replace it. If only the lagging or bearings are worn, re-lagging or a bearing change is often enough. A welded-shaft pulley that fails repeatedly is usually worth replacing with a refurbishable live-shaft design that lets you change the shaft and lagging later.
